Before you start
📏
Tape measure
Measure in inches if you can — that is how cabinets are built.
✏️
Paper and pencil
Sketch the room by hand, even if it looks rough, and write down every measurement.
📱
Your phone
The regular camera is enough. Wipe the lens and turn the lights on.
Step 1 — Take the measurements
Always measure corner to corner. When in doubt, measure twice: a one-inch mistake shows up at install.
Top view
- 1
Full wall
Measure every wall corner to corner, not just where the cabinets go.
- 2
Window
Measure from the nearest corner to the MIDDLE (center) of the window — not the edge. Also note the window width.
- 3
Sink, stove and fridge
Measure from the nearest corner to the MIDDLE (center) of each one — not the edge. Also note their width.
- 4
Doors
Measure from the corner to the door frame, and the door width.
- 5
Outlets, water, drain and gas
Mark them on your sketch: where the outlets, water valves, drain and gas line are.
Wall front view
- 6
Floor to ceiling
Measure the full height of the wall, floor to ceiling.
- 7
Window height
Measure up: from the floor to the bottom of the window. (The sideways distance, from the corner to the middle of the window, goes in step 2.)
- 8
Window to ceiling
Measure from the top of the window to the ceiling.
- 9
Anything unusual
Note beams, columns, soffits or uneven floors.
💡 Quick tips
- •Write each measurement on your sketch right away — don't trust your memory.
- •Ask someone to hold the end of the tape so it stays straight and accurate.
- •No kitchen yet, or still unfinished? That's fine, measure the walls anyway.
Step 2 — Take the photos
Photos show what measurements can't. These examples show you what we look for.
✓Do this

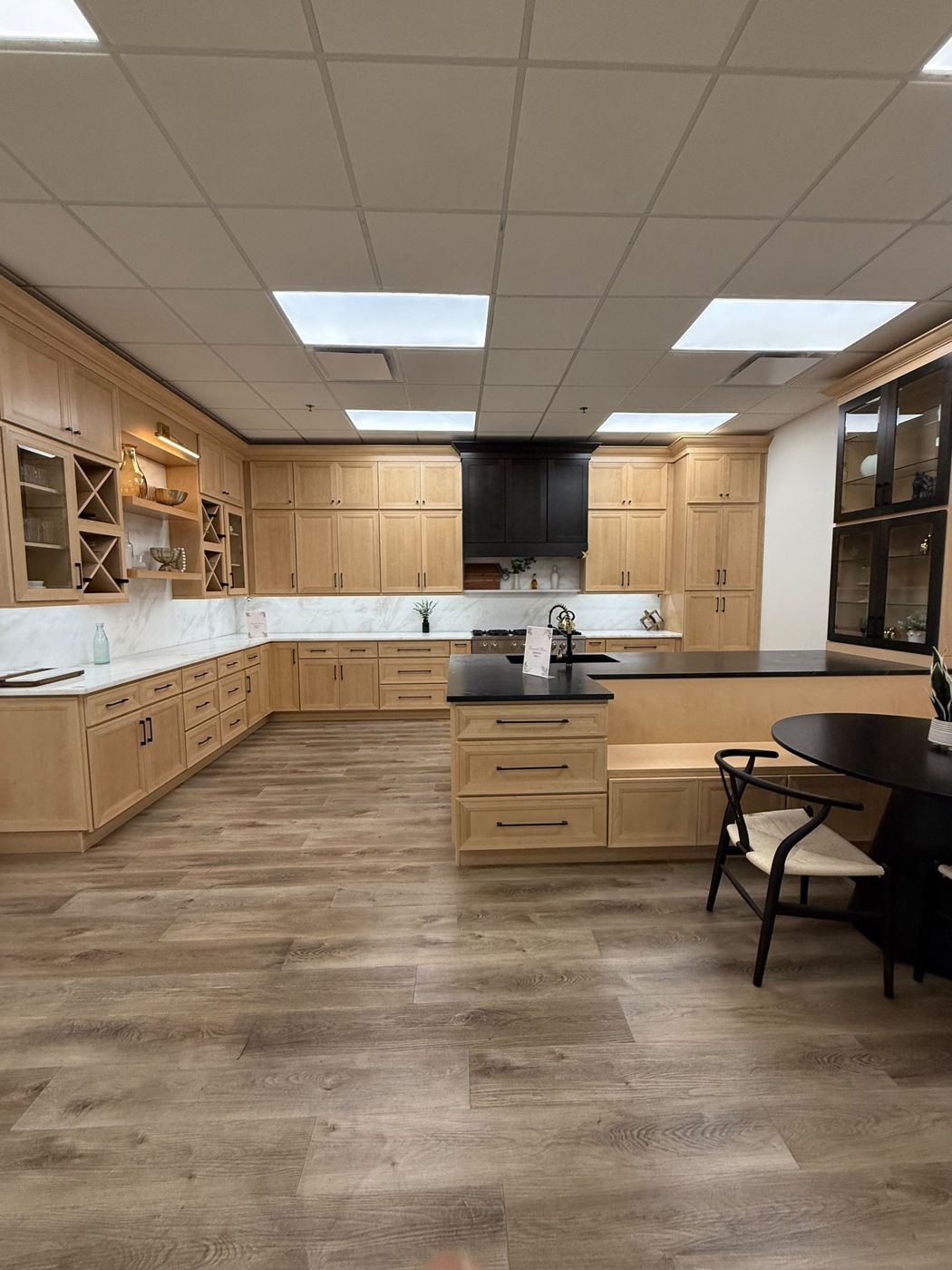

Photo 1: the whole room
Stand in a corner so the ceiling, floor and walls are all visible. Even if you have no kitchen yet.

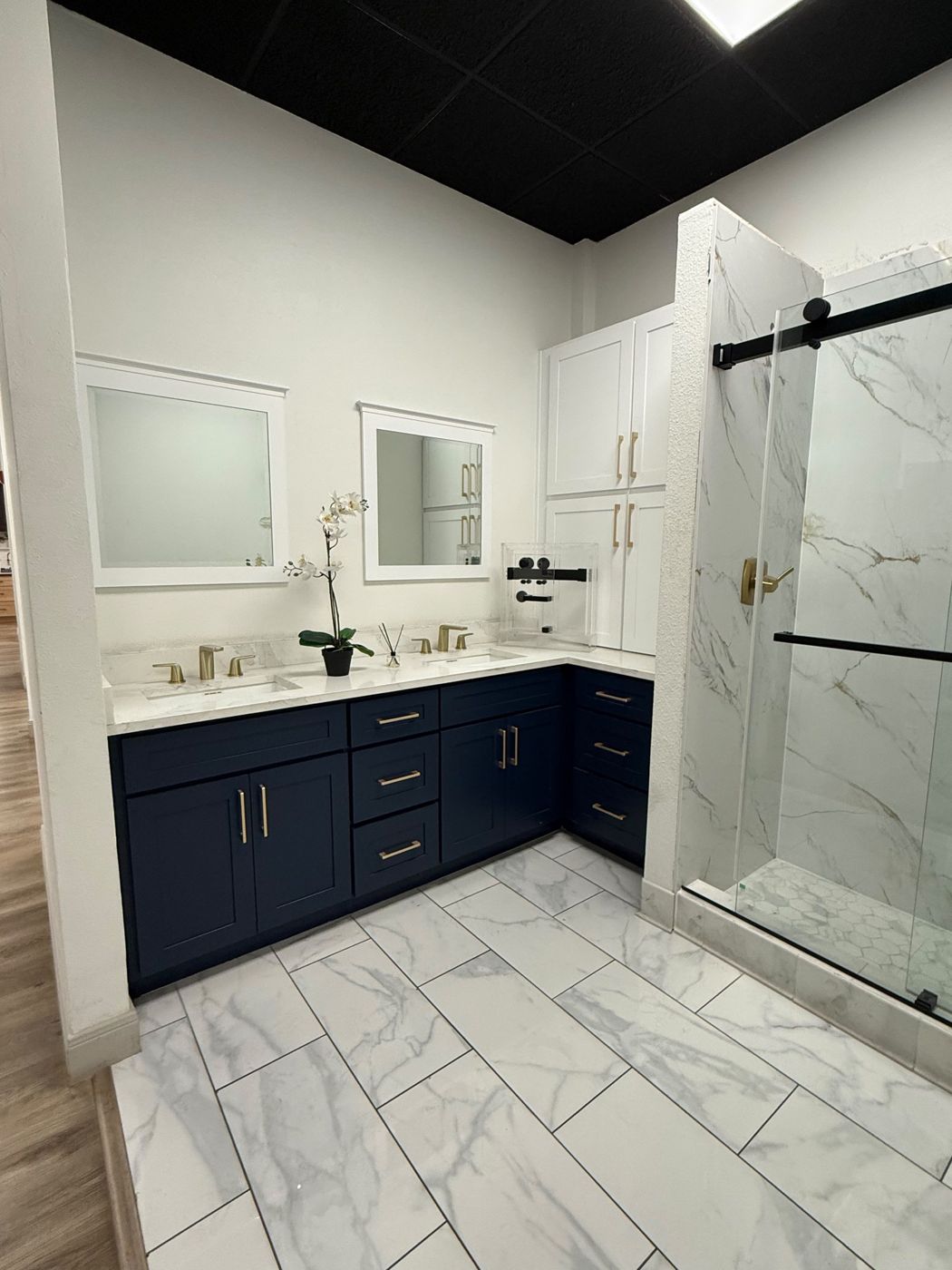

Photo 2: each wall, floor to ceiling
One photo per wall, straight on. Windows, doors and appliances fully in the frame.

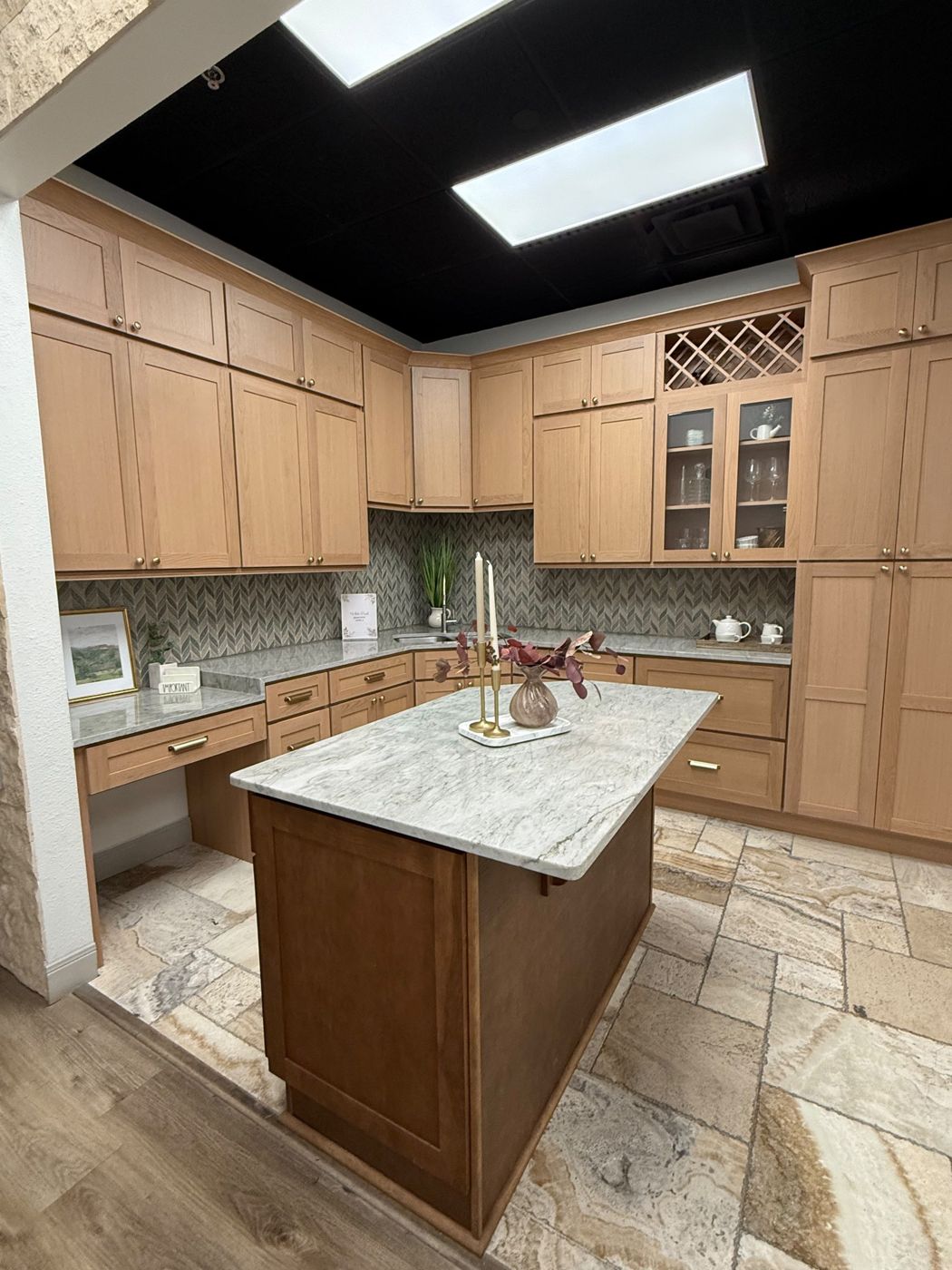

Photo 3: the corners
Shoot each corner to show how the walls meet, and everything against them.
✕Not this
Cropped
Missing the ceiling and floor — we can't see the height or the sides.
Too dark
Turn on every light and avoid shooting into a bright window.
Tilted and too close
Stand straight and a bit farther back so the whole wall fits.
Extra photos that really help
- 🔌Close-ups: outlets, water valves and the gas line.
- ⬆️The ceiling, if there are beams, soffits or ducts.
- 🧊Your appliances, to see their model and size.
- 📝Your hand sketch with the measurements, if you made one.
Step 3 — Send it to us
Before you send, check that you have everything:
- ✓Each wall's measurement, corner to corner
- ✓The floor-to-ceiling height
- ✓Window: distance from the corner to the middle of the window, and its width
- ✓Doors: distance from the corner and width
- ✓Sink, stove and fridge: distance from the corner to the middle (center) of each
- ✓Outlets, water, drain and gas marked
- ✓A photo of the whole room and one of each wall
Frequently asked questions
I don't have all the measurements, can I send what I have?+
Yes. Send what you have and we will tell you what is missing. The more complete, the more accurate the quote.
Can I send the photos by WhatsApp?+
Yes, use the WhatsApp button on this page. You can also upload them with the button below.
Do I measure just the cabinet area or the whole wall?+
The whole wall, corner to corner. That way we can see how to fit everything that works.
I'm not used to a tape measure in inches, what do I do?+
Use whatever unit you have (inches or centimeters) and write it next to each number. We do the conversion.
